Teuvan FK2000

Trailer mounted versatile field kitchen system with innovative cooking capabilities, blackout and camouflage features – highly mobile for short notice embarkation. Teuvan FK2000.

The FK2000 is a highly mobile self-contained system ideal for Rapid Deployment Forces. The kitchen can be towed by any vehicle, due to light weight and a height adjustable tow bar. The kitchen may also be delivered by aircraft.



Teuvan FK2000 Feldküche | Feldkochherd | Feldküchencenter

FK2000P with lifting eyes

Teuvan FK2000: Dimensions and weight

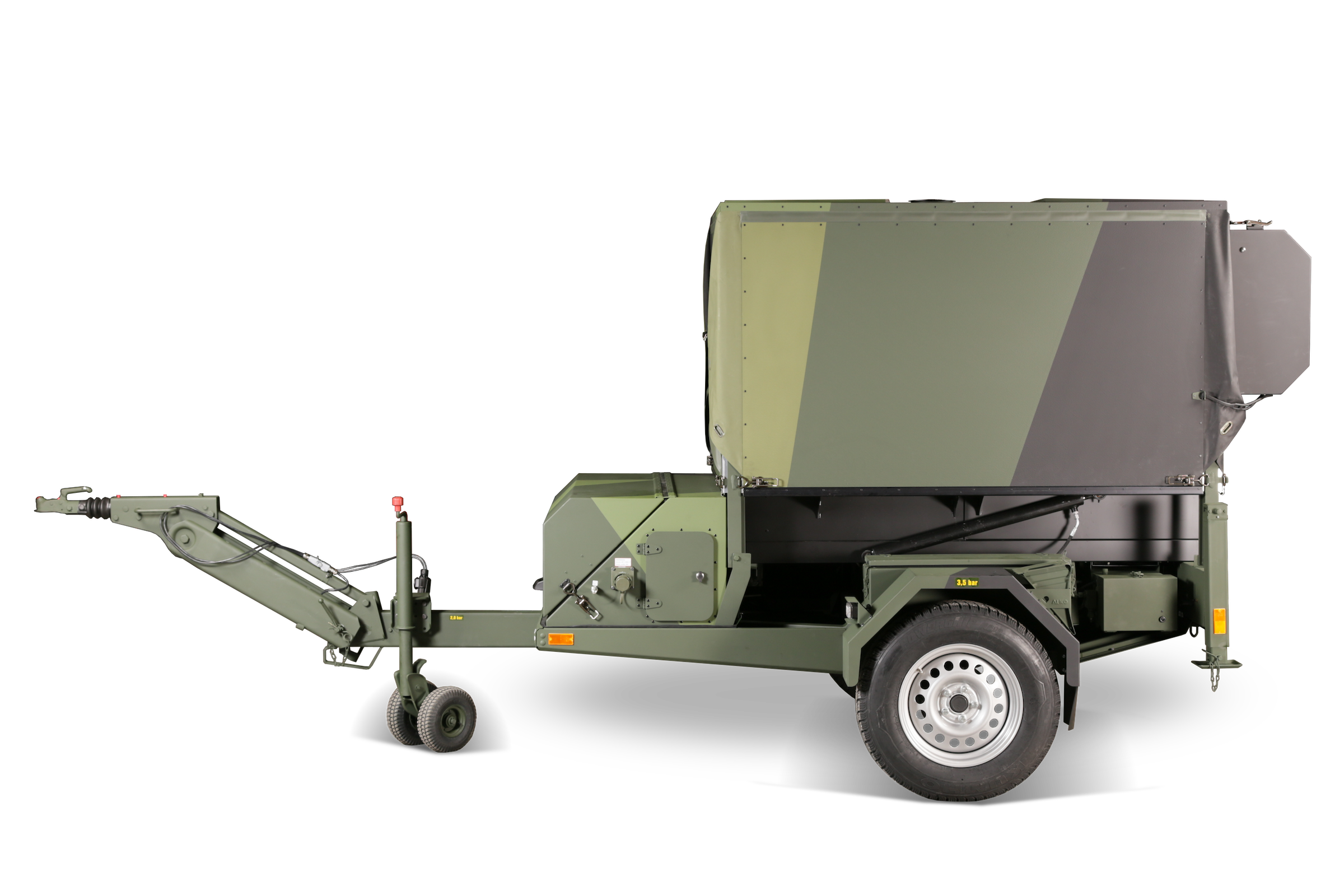

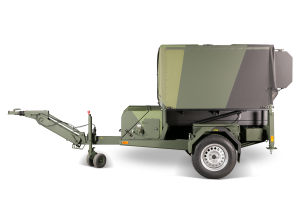

In transport: L x W x H: 5,0 m x 2,1 m x 2,2 m .

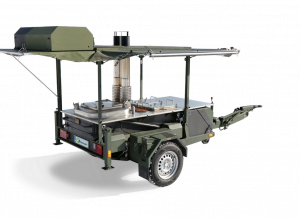

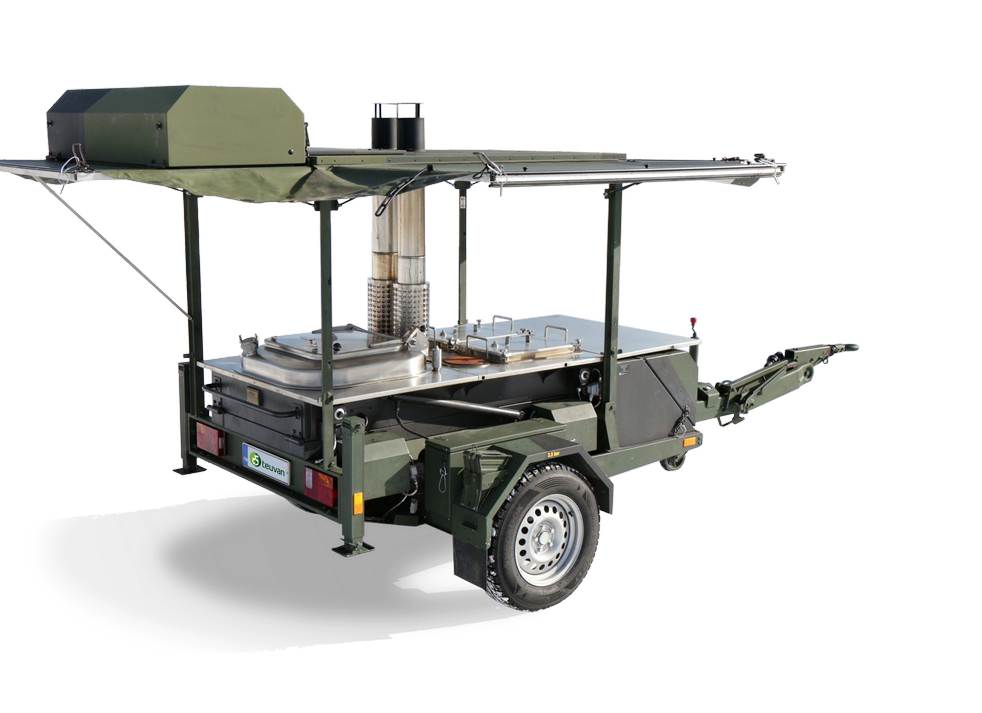

In operation: L x W x H: 6,0 m x 3,3 m x 2,3 m

Dry weight: 1450 kg

Trailer specifications:

  • One axle with integrated suspension
  • Maximum axle load 1600 kg (3500 lbs)
  • Mechanical brakes with parking brake
  • Tow connection with height adjustment range approx: ..1140 ±50 mm, interchangeable vehicle connectors, including 76mm NATO standard tow eye.
  • Maximum load on tow connection 100 kg (220 lbs)
  • Standard 12 V trailer tail lights with 13-pin (ISO 11446) vehicle connector and an adapter for 7-pin (ISO 1724).
  • Optionally available: Automatic electronic transformer for ..28 V supply complete with interchangeable adapter cables for 15-pin or 7-pin N+S or 12-pin NATO connector
  • Mud guards (stainless steel) and wheel pegs (2 )
  • Support feet with leveling jacks (2 )
  • Front trolley wheel with leveling jack

Teuvan FK2000 Feldküche | Feldkochherd | Feldküchencenter



Electrical system

  • Voltage: 230V AC 50Hz single phase, (OR Optionally US 120 V AC 60 Hz)
  • Power requirement: 4-3kW depending on the installed equipment
  • Electricity required for burners, lighting,
  • Electrical circuits protected by double pole fuses and RCD
  • Easy access control panel with indicator lights and switches
  • All of the modules are equipped with rugged multipole quick connectors



Power generator

available as option

  1. separate diesel generator set with a transport platform (It is possible to use a suitable generator set of customer’s choice.) OR
  2. on-board diesel generator set in a soundproof compartment (Operating environment temperature +35°C, higher temperatures require that generator is taken out of its‘ soundproof compartment when used.).



Fuel system features

  • Fuel: Diesel, LFO or Kerosene, Jet-A, JP-8
  • Centralized fuel tank of approx 90 litres, 24 US Gal (sufficient for up to 2 to 3 days normal usage)
  • Filters on fuel lines
  • Quick couplings for each burner
  • Fuel gauge
  • Solid fuel operation without burner and combustion chamber is possible as a back up (except for the oven)
  • Available option: Fuel system upgrade for arctic climate

Teuvan FK2000 Feldküche | Feldkochherd | mobile field kitchen Feldküchencenter



Burners

  • Electrically driven fuel injection pump and combustion air fan
  • Specially designed combustion chamber for optimal efficiency and complete combustion
  • Electronic control of burner functions
  • 1-pipe fuel connection with recirculation loop for fuel conditioning and de-airing
  • Burner is detachable and easily accessible for maintenance
  • Fuel lines and electric cables are equipped with quick connectors





Shelter and Working area

  • Roof/Protective shelter
  • Gas spring assisted shelter side panels
  • Shelter panels made of aluminum
  • Fluorescent lighting
  • Gas spring assisted roof hatches for ventilation
  • Detachable tarpaulins
  • Fixed storage boxes for tools and shelter/tarpaulin accessories
  • Available options:
    3 removable storage boxes for kitchen utensils and tools, complete with detachable transport rack
    Work space and kitchen capabilities can be further extended by connecting the kitchen to an FKE2011 cold storage



Kitchen features

  • Rear preparation area:
    – 150l double walled cooking kettle, tips hydraulically for
    – 20l water heater
  • Front preparation area:

one of the following can be used at a time

  • 2 x frying pan + lid
  • 2 x 60l kettle + lid
  • Other utensils optionally available
  • Detachable worktops with cutting boards
  • 2 x independent diesel burners with thermostatic controls
  • Available option: 150l Oven with forced air convection and diesel burner system- GN 1/1 sized, includes 7 x GN1/1 aluminum baking plates
    – forced air circulation by means of electric fan
    – thermostat control and thermometer
    – sealed door with safety latch



Teuvan FK2000: Capacity

This kitchen can feed four basic meals per day to as many as 500 persons or more complex meals four times per day to as many as 250 persons – as many as 2000 meals per day – suitable for Battalion sized units or relief operations.
